| The linear
actuator can be controlled with CAN Bus using a USB to CAN Bus
interface board. This approach is described here. |
||
 Thomson HD Electric Linear Actuator |
||
|
||

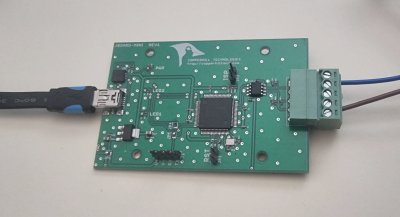

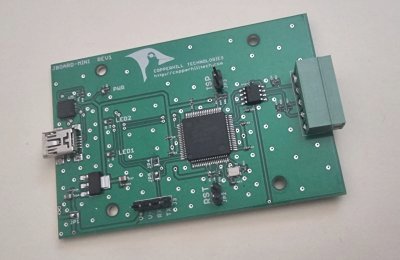

| Copperhill Technologies USB to CAN Bus Interface Board | ||
|
|
||

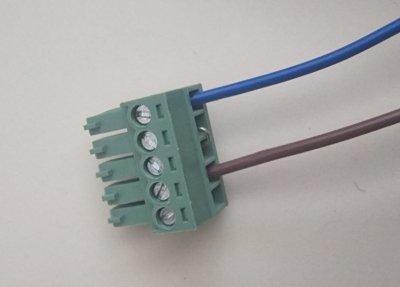

 CAN Bus connector The
blue wire connects the CAN High signal (pin 1) |
||
|
|
||
| In
this case the actuator is controlled by a Personal Computer

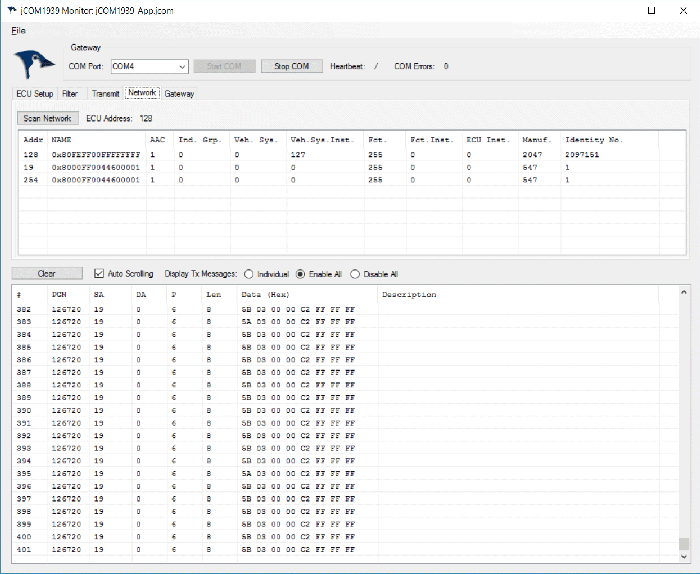

(or similar device) through a USB port. We rely on the availability of a suitable interface board for this to work. Fortunately a company called Copperhill Technologies offers a range of CAN Bus boards. https://copperhilltech.com/ The USB to CAN Bus board used here is an earlier version of several boards now available through Copperhill Technologies. Copperhill Technologies offer source code for a test program to manager the CAN Bus. This is written in C# and can be used as the basis for custom software development. The main screen of this program is shown below.  |
||
|
|
||
Thomson HD Linear Actuator 12 volt 20 amp Power Supply |
